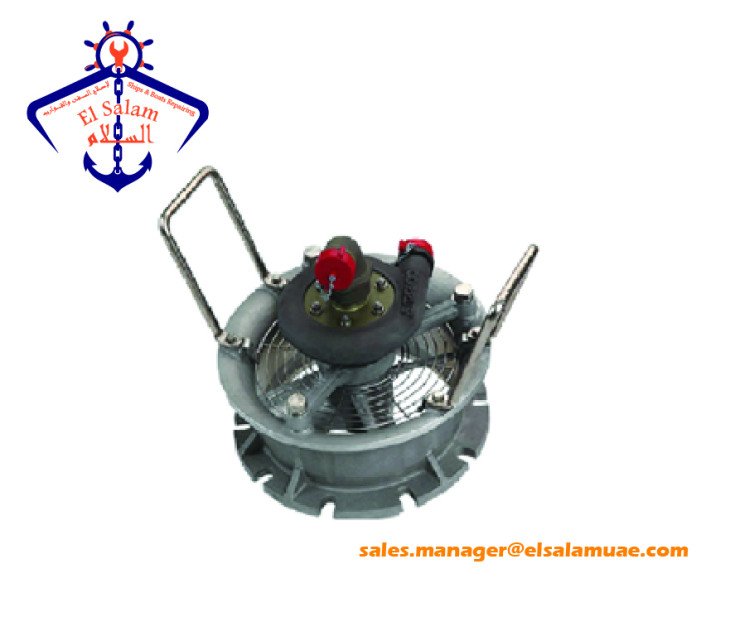

COPPUS MARINE VENTILATORS

Steam-, Air-, and Water Turbine-Drive Ventilators

These rugged, dependable cargo tank ventilators have served the shipping industry for many years. They are ideal for on-board gas-freeing, drying and ventilation operations and are available in supply or exhaust models.

STEAM/COMPRESSED AIR TURBINE-DRIVE MODELS FEATURES & ADVANTAGES:

• Cast iron turbine housing with aluminum cover
• Bronze turbine wheel
• Grease-type ball bearings
• Cast aluminum fan and fan casing
• Stainless steel fasteners, mounting studs and protective screen
• Delivers 5,350 cfm (9,090 m3/hr) Supply (C-12A)
• Delivers 4,600 cfm (7,815 m3/hr) Exhaust (C-12A)
• Delivers 8,400 cfm (14,275 m3/hr) Supply (C-15A)
• Delivers 6,500 cfm (11,044 m3/hr) Exhaust (C-15A)

WATER TURBINE-DRIVE MODELS FEATURES & ADVANTAGES:

• Cast aluminum anodized turbine housing
• Cast aluminum anodized impeller
• Cast aluminum inlet and outlet water connections
• Grease-sealed stainless steel ball bearings
• Cast aluminum fan and fan casing
• Stainless steel fasteners and protective screen
• Delivers 5,000 cfm (8,495 m3/hr) Supply (C-12A)
• Delivers 4,700 cfm (7,985 m3/hr) Exhaust (C-12A)
• Delivers 7,400 cfm (12,573 m3/hr) Supply (C-15A)
• Delivers 5,700 cfm (9,769 m3/hr) Exhaust (C-15A)

ACCESSORIES:

• Vaned Adapter
• Beaded Adapter
• Bonding Cable
• Duct

SAFETY PRECAUTIONS:

• Always be sure unit is connected to suitable ground connection.
• Mounting on non-conductive or free-standing use requires a bonding cable

DIMENSIONS:
